Accelerators

CGN Dasheng is a leading manufacturer of industrial electron accelerators, transport systems and associated infrastructure. We offer three accelerator formats; The DD electron accelerator, the DG accelerator and a Linac accelerator. Globally we have installed more than 130 accelerators with a growing number, currently 18, installed in international markets.

Our professional and dedicated staff can provide specialist advice during accelerator selection to ensure that equipment is matched to your operational requirements. Comprehensive installation, training and maintenance programs can be developed to meet customer needs and operational experience.

DD Electron
Accelerator

DG Electron
Accelerator

DZ Linear
Accelerator

Under Beam
& Transport
Systems

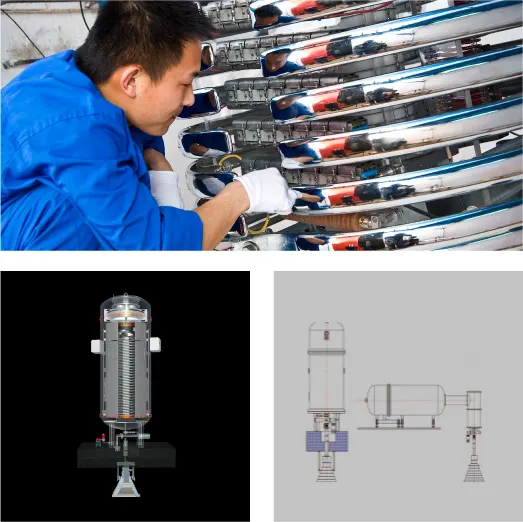

DD Electron Accelerator

The DD electron accelerator is a high frequency high voltage accelerator, which is available with energy level up to 5 MeV and power from 30 to 200kW, and it can be designed as self-shielding option the energy below 1 MeV.

Key Features:

RELIABLE — Easy to operate.

FLEXIBLE — The ability to process a diverse array of materials

ADAPTABLE — The ability to adjust the scan window to Horizontal/Vertical/L shape.

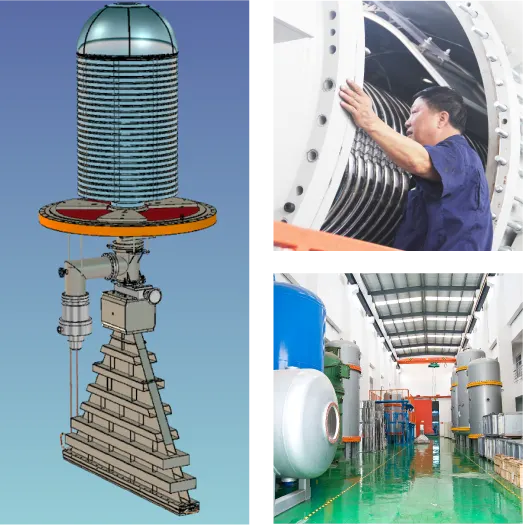

DG Electron Accelerator

The DG electron accelerator is a direct current and high voltage accelerator that is based on air-core transformer coupling principle, and is similar to the ELV accelerator that is manufactured in Russia. An intermediate frequency generator powers the primary coil. The secondary coil generates AC voltage by coupling and boosting. An electron beam is emitted from the cathode surface, through a high vacuum and is accelerated by the variable gradient and constant gradient of the two parts of the accelerating field. The beam is focused via a lens at the acceleration outlet before being scanned by two alternating magnetic fields before the beam finally goes through the titanium membrane to enable irradiation processing.

This form of electron accelerator has a high electric power conversion rate and can reach 80{6cdbd41d092fe16467f9183981b3cd452cd1da4ec8f2736c31f1f9dc8a2cff23}. The machine has compact structure and relatively small volume. It is available with energy level up to 2.5 MeV and beam current level up to 150mA. This accelerator can be designed with a self-shielding option where the energy is below 1 MeV.

Key Features:

SMALL — A physically compact accelerator.

CONTINUOUS — The energy and beam current can beadjusted continuously.

POWERFUL — A beam current of up to 150 mA makes this a powerful machine.

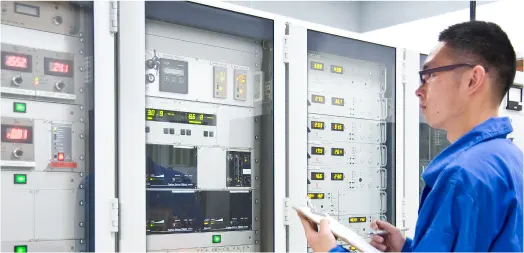

DZ Linear Accelerator

The DZ linear accelerator is offered with energy of up to 10 MeV and power level up to 40 kW. The DZ accelerator has the penetration required to enable it to sterilization medical devices and health care products as well as food safety products and non-destructive testing materials.

Key Features:

POWERFUL — 10MeV (which is the maximum energy used in industrial application)

PRECISE — The products are positioned precisely and the dose delivery precisely

CONVENIENT — the products are processed with final package

Under Beam and Conveyor Systems

CGN Dasheng provides the complete conveyor and control system solutions that can be matched to the capability of accelerator that is being used as well as the specific processing requirements. We offer a number of key design formats that are designed to handle a number of common applications.

Applications:

Under Beam and Conveyor Systems

CGN Dasheng provides the complete conveyor and control system solutions that can be matched to the capability of accelerator that is being used as well as the specific processing requirements. We offer a number of key design formats that are designed to handle a number of common applications.

Applications:

WIRES AND CABLES

MEMBRANE AND FOAM SHEETS

BOXES AND PACKAGES

Contact us

to discuss your specific requirements.

> WE ARE HERE TO HELP
